AC Drive

AC Drive
AC Drive
Send Inquiry
Product Code : PA-12
Brand Name : PROMACH AUTOMATION
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
We are providing the AC Drive which is made up of the premium quality of electrical components that is known for the fast commissioning of functionality that are used for flexible expansion capability. It has a compact design which saves the maximum amount of space in the industry. The line harmonics are generally reduced due to which total harmonic distortion is below the limit required. Additionally, our offered AC Drive draws less current from the supply for same driver power.

Product Details:
  • Input Supply Voltage    220/440V

Benefits:
  • Wide range of Control Units with different communication interfaces available
  •  Additional line reactors are not needed and should not be connected
  • High Active Power Component - draws less current from the supply for the same drive power so smaller cables can be used
  • Optional SD card for backup and series commissioning

Design:

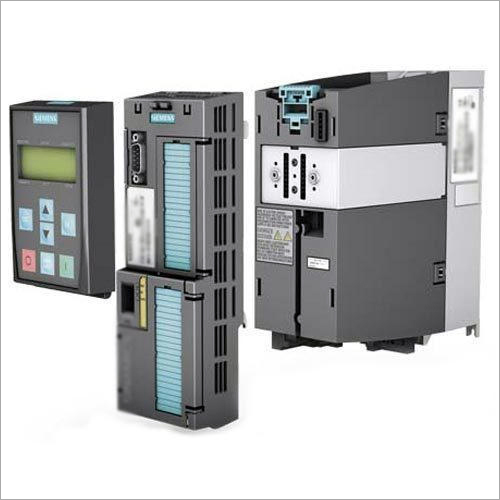

The G120 is a modular drive consisting of Control Unit (CU), Power Module (PM) and optional Operator Panel (OP) and is designed to provide precise and cost effective speed/torque control of AC Motors in a wide range of industrial applications. The PM230 is available in an IP55 or IP20 format and is designed for pump, fan and compressor applications with a square law characteristic. Braking choppers are not fitted so solutions using PM230 are not suited for dynamic applications.

PM 230 IP55 (0.25 kW to 90 kW):
Available with Class A or Class B EMC Filtering the IP rating is maintained with a blanking cover or BOP-2 but reduces to IP54 if an IOP is fitted.

PM 230 IP20 (0.25 kW to 75 kW):
PM230 Push through IP 20 (1.1, 2.2 3.0 kW) - available unfiltered or Class A EMC Filtering and is designed for cabinet mounting. The highest power rating of FSA to FSC is also available as ‘Push-through’ where the heat sink pushes through the back of the cabinet minimizing the heat inside the cabinet.


Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • Depend on the order Per Day
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
