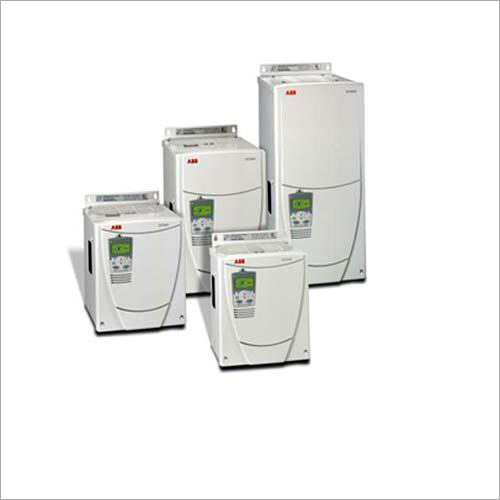

Digital DC Drive

Digital DC Drive
Digital DC Drive
Send Inquiry
Product Code : PA-25
Brand Name : PROMACH AUTOMATION
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
We provide Digital DC Drive that has easy and fast functionality with the proper guidance through the commissioning procedure either by ABB PC tools or by the control panel. That data is requested with the clear and plain text messages as it is multilingual and set the parameters as per your needs. Not only the messages, but our offered Digital DC Drive provide online information and detect the defects of connected hardware so as to provide optimum functionality to our customers.

Online Info system:
To make it easier and more informative, there is an online info system available at each step, helping to set the correct values for each parameter and troubleshoot the problems.

Optimal Adaptability:
Small PLC inside.
Program your drive on-site during commissioning.
Create your own I/O signals, modify speed or torque reference, chain or set a timer.
Do it without any additional hardware or software.
As simple as setting a parameter.
Access to any signal or control bit.
There is also a DWL AP PC tool available for graphical display of Adaptive Programming.

Adaptive Programming features:
16 programmable function blocks

Available functions:
  • Logical: AND, OR and XOR
  • Mathematical: add, mul, div, abs, max, and min
  • Other: timer, switch, comparator, filter, SR, PI and user-defined warnings or faults
  • Freely definable execution order
  • Easy documentation

Functions of Basic Firm ware:

  • Different speed ramp function
  • Speed control
  • Torque control
  • Armature current control
  • Field current control
  • Automatic field weakening
  • E-stop function according to Profibus standard
  • Dual field control
  • Mechanical brake control
  • DC breaker control
  • Interface for fieldbus and module bus
  • Programmable digital and analogue outputs
  • Master-Follower bus
  • 16 blocks Adaptive Program
  • Interface for IEC 61131 programming
  • 12-pulse function - parallel, serial, sequential
  • 3-phase field exciter operation
  • Converter protection (temperature, voltage,)

Motor protections:
  • Stall protections
  • Thermal motor model
  • 2 channel motor temperature measurement PTC or PT100
  • Klaxon supervision
  • Speed feedback error
  • Over speed
  • Armature current ripple
  • Armature over current
  • Minimum field current

PC Tools for ABB Drives:
Drive Window Light 2 is an easy-to-use start-up and maintenance tool for ABB drives. Supported drives are ACS140, ACS160, ACS350, ACH400, DCS400, ACS550, ACH550, DCS800 and ACS800.

Highlights:
  • Viewing and setting parameters in offline and online mode
  • Editing, saving and downloading parameters
  • Comparing parameters
  • Graphical and numerical signal monitoring
  • Drive control
  • Start-up assistants
  • DWL AP tool for DCS800
  • All DCS800 DC drives are equipped with Drive Window Light
Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • Depend on the order Per Day
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
